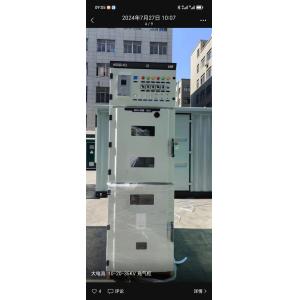

40.5kV Modular and compact switchgear with integral gas insulation

General Introduction:

KYN61-40.5 Type Air-Insulated Metal-Clad Withdrawable Switchgear
It is designed as withdrawable module type panel, and the withdrawable part is fitted with It can also be fitted with isolation truck, PT truck, fuses truck and so on. It is applicable to three phase AC 50/60 Hz power system, and mainly used for the transmission and distribution of electrical power and control, protection, monitoring of the circuit.

Standards and specifications:

IEC60694 The commo n technical requirements of high voltage switchgear and controlgear
IEC62271-200 A.C. metal enclosed switchgear and controlgear at the rated voltage of 1kV~52k V
IEC62271-100 High voltage switchgear and controlgear-Part 100:Hi gh voltage A.C. circuit breaker
GB3906 3.6~ 40.5kV alternating current metal enclosed switchgea r and controlgear
GB1984 High voltage alternating current circuit breaker
GB/T11022 The commo n technical requirements of high voltage switchgear and controlgear
DL/T404 3.6~ 40.5kV alternating current metal enclosed switchgea r and controlgear

Technical parameters:

Item	Unit	Parameters
Rated Voltage	KV	36	40.5
Rated Frequency	Hz	50/60
Rated Current	A	630 1250 1600 2000 2500 3150
Branch busbar rated current	A	630 1250 1600 2000 2500 3150
Main busbar rated current	A	630 1250 1600 2000 2500 3150
1min power frequency withstand voltage	KV	70	95
Lightening impulse withstand voltage	kV	170	185
Rated Short-time Withstand Current (4s)	kA	20/25/31.5/40
Rated Short Circuit Breaking Current(Peak)	kA	40/50/63/80/100
Protection type		IP4X for housing
Rated voltage for control Circuit	V	DC110, DC220, AC220

About Us

Wenzhou Qiupu Electric Power Co., Ltd. As an innovative technology-based enterprises, the company has strong technical force and the world's leading production technology and high-end testing equipment, and establish and improve the procurement of components, product processing assembly, testing, packaging to sell a complete set Quality management system to ensure that every product of the eligibility, the company has 10 years of experience in the power industry, and is still growing, product and sales network throughout the country

FAQ

Q1: Is OEM/ODM available?
A1: Yes, it is! Our products can be Customized. We have design and engineer teams,we can customize products according to customers' drawing or requirements.

Q2: What's your MOQ?
A2: One Set.

Q3: How is the delivery time?
A3: It depends your order quantity and it normally takes about 20-30 days.

Q4: How do you control the quality?
A4: We have QC team comply with TQM to ensure the quality. Each step is in compliance to the standards. At the same time, we will take photos and shoot video for you if you need.Every product will be fully assembled and carefully tested before packing and shipping.

Q5: How long is the warranty?
A5: Within one year from the sale date, if there are any accessory problems, you just provide the photos of damaged accessory, then we will provide free accessory. According to the number of products, we will provide easily damaged accessories for free. We also can provide technical support if you need.

Note: we offer special customized products according to client’s requirement.
